| Model | ZL32-05 | ||||||||
| Working Voltage Range | DC：6-24V (If solar photovoltaic panel is used for power supply, parameters shall be provided: rated voltage, open circuit voltage, short circuit current) | ||||||||
| Rating Power | 6V：2-6W / 12V：3-6W / 24V：4-7W | ||||||||
| Static Water Head | 1-3.0M | ||||||||
| Static flow rate | 1.0-3.0Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value：Weak acid, neutral, weak base. Amphibious use | ||||||||
| Max Noise | Under normal working condition, the water pump is 1m away from the tester ＜35Decibel | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | It can be used with solar panel, small fountain, aquarium, garden watering, foot bath, etc | ||||||||

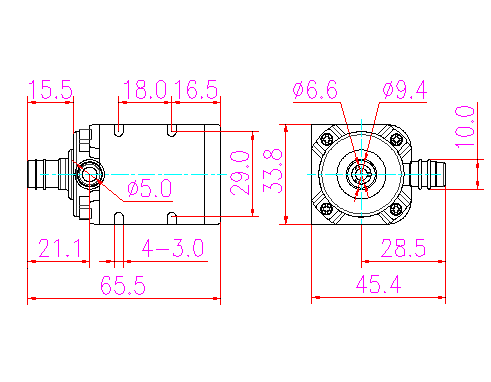

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length （mm） | Width （mm） | Height （mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | Inlet and outlet with anti slip strip | ||
| 45 | 34 | 66 | IP68 | φ9.4 | φ6.6 | φ10 | φ5 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
