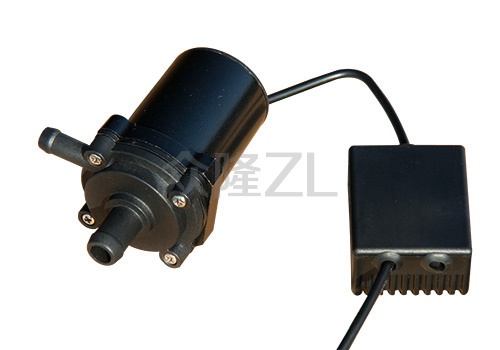

| Model | ZL50-01B | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：10-18W / 12V：10-40W / 24V：20-70W | ||||||||
| Static Water Head | 2-11M | ||||||||
| Static flow rate | 8-22Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH: weak acid, neutral, weak base. Non diving use | ||||||||
| Max Noise | Under normal working condition, the distance between water pump and tester is less than 45dB | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤90℃（Aluminum alloy shell） | ||||||||
| Application | Pipeline hot water circulation, car washing, solar water heater, small fountain, aquarium, etc | ||||||||

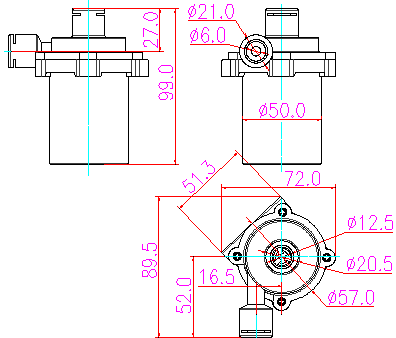

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Inlet and outlet buckle | ||
| 90 | 72 | 99 | IP67 | φ20.0 | φ12.5 | φ20.0 | φ6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
