| Model | ZL60-02 | ||||||||
| Working Voltage Range | DC：12-24V | ||||||||
| Rating Power | 12V：10-50W / 24V：20-80W | ||||||||
| Static Water Head | 2-8M | ||||||||
| Static flow rate | 10-45Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、non-Submersible pump | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜50dB | ||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤100℃ | ||||||||
| Application | Electric vehicle engine pump, vehicle water cycle, aquarium, etc | ||||||||

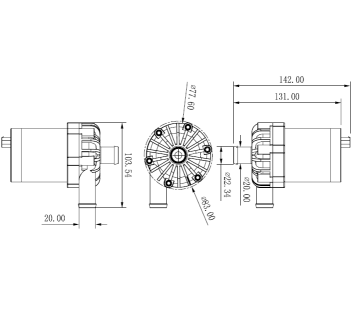

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Inlet and outlet with anti slip strip | ||
| 142 | 65 | 104 | IP67 | φ20 | φ14 | φ20 | φ14 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
